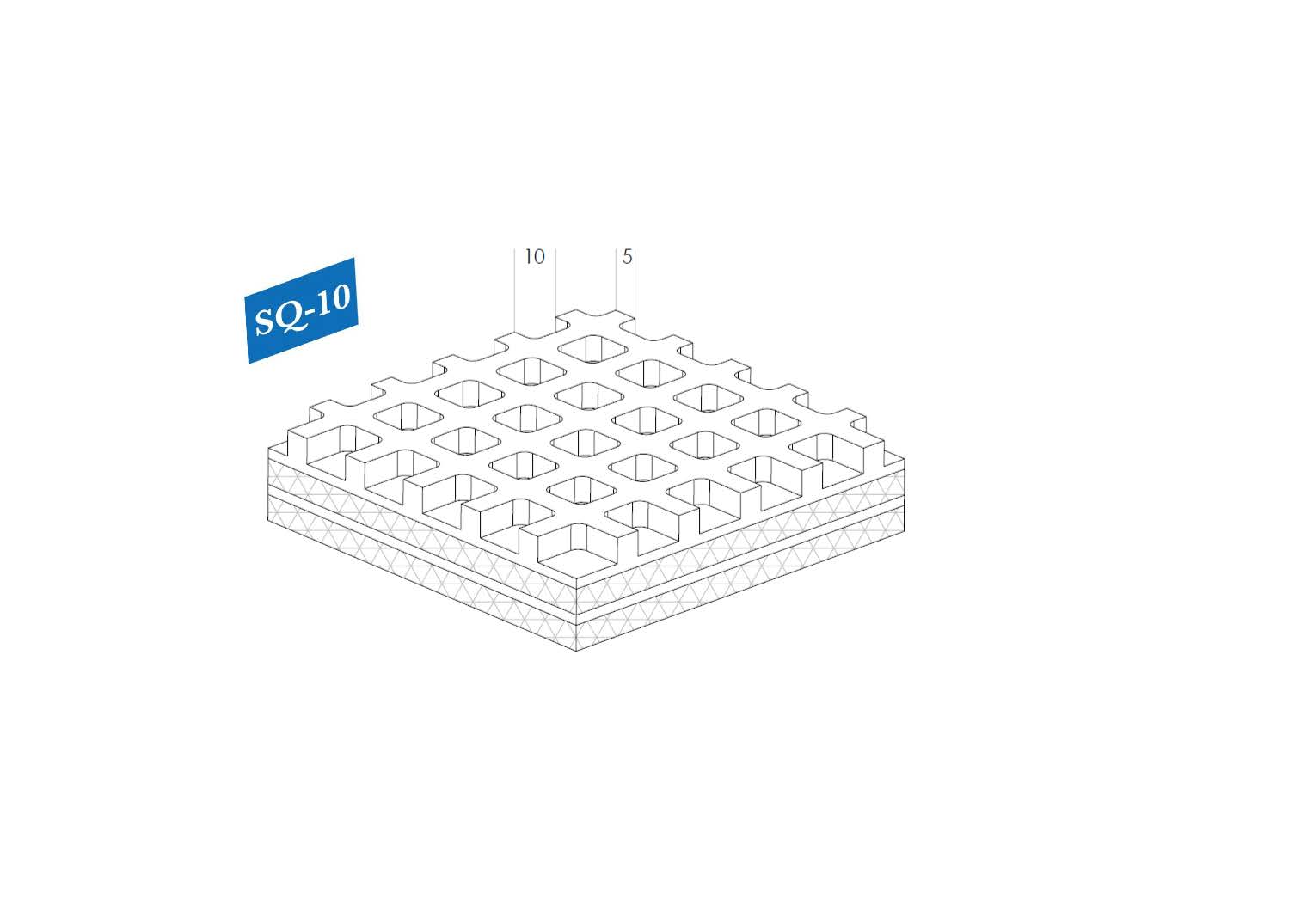

SQ-10 Small concave square

Color:Black/ Grey
Polyester fabrics:3 ply/ 4 ply
Hardness:58°±3°
Max. Production Width:1350 mm
Characteristics:As an alternative for RH-12,
                             the higher percentage of land
                             permits a good grip on materials.
                             Suitable for vacuum system.






The specialist of endless rubber belts made by our company are wear resistance and with no seam.

Endless manufacturing method makes the belt neither be tearing, nor have uneven problem at junction.

Main structure of the belts are combined by rubber cover, polyester farbics, and top face.

Adopting rubber material of wear resistance, and polyester fiber of stretch resistance as the main material of the belt.

High flexibility and even thickness can improve processing precision of workpiece in linear conveyance.
